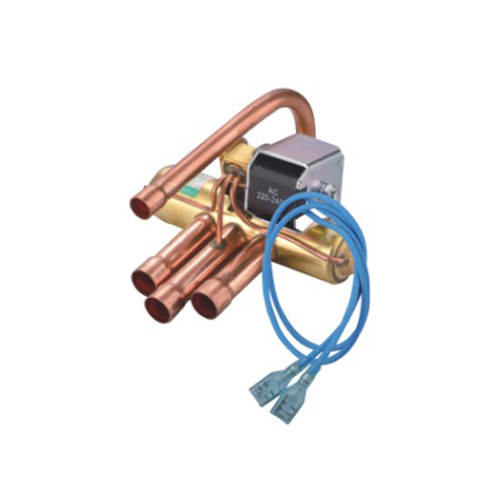

SHF Series Four Way Reversing Valve 2

SHF Series Four Way Reversing Valve 2

Introduction:
The 4 way reversing valve is used in heat pump air-conditioner system such as central type , unitary type or room AC to control the direction of refrigerant flow to realize heating and cooling cycle of System

Contact Us

Details

Catalog No A

P/N

Capacity (Nominal)

Connetion Size

Actuating Pressure

Suitable Refrigerant

Product
Certificate

cooling Cap-R22 U.SK./KW

cooling Caq—R41QA USR/KW

DTube O Inch

E.S.C O Inch

SydtemMax.
PSI

Pmax
PSI

PMin
PSI

Model and technical parameters

SHF-4H-23

1.3/4.5

1.5/5.3

5/16

3/8

680

440

15

R410
Ar407
CR22

UL
VDE
CQC

SHF-4H-23U

1.3/4.5

1.5/5.3

5/16U

3/8

SHF-7H-24

2/7

2.3/8.2

5/16

1/2

SHF-7H-34U

2/7

2.3/8.2

3/8U

1/2

SHF-7H-34-R

2/7

2.3/8.2

3/8 O.D.

1/2

SHF-7H-35

2/7

2.3/8.2

3/8

5/8

SHF-7H-45

2/7

2.3/8.2

1/2

5/8

SHF-9H-35

2.5/9

2.9/10.5

3/8

5/8

SHF-9H-35U

2.5/9

2.9/10.5

3/8U

5/8

SHF-9H-45

2.5/9

2.9/10.5

1/2

5/8

SHF-11H-45D1

3/11

3.5/12.9

1/2

5/8

SHF-11H-46D1

3/11

3.5/12.9

1/2

3/4

SHF-11H-35

3/11

3.5/12.9

3/8

5/8

SHF-11H-45D1

3/11

3.5/12.9

1/2

5/8

SHF-14-46

4/14

4.7/16.4

1/2

3/4

SHF-14-47

4/14

4.7/16.4

1/2

7/8

SHF-1 小 57

4/14

4.7/16.4

5/8

7/8

SHF-20A-46

5.6/20

6.6/23.4

1/2

3/4

SHF-20A-47

5.6/20

6.6/23.4

1/2

7/8

SHF-20A-57

5.6/20

6.6/23.4

5/8

7/8

SHF-20A-67

5.6/20

6.6/23.4

3/4

7/8

SHF-20D-46

5.6/20

6.6/23.4

1/2

3/4

SHF-35A-47

10/35

11.7/41

1/2

7/8

SHF-35A-57

10/35

11.7/41

5/8

7/8

SHF-35A-59

10/35

11.7/41

5/8

1-1/8

SHF-35A-67

10/35

11.7/41

3/4

7/8

SHF-35A-69

10/35

11.7/41

3/4

1-1/8

SHF-35A-79

10/35

11.7/41

7/8

1-1/8

SHF-35A-711

10/35

11.7/41

7/8

1-3/8

SHF-35B-67

10/35

11.7/41

3/4

7/8

Technical

parametters

of key

Vlodd

Carcgoiy

Voltage

Hz

Wattage

Coil Style

L-Series

SHF-4-10L1

AC100V

50/60

4.5/3.5W

Lead wires on coil

SHF-4-10L2

AC200V

SHF-4-10L3

AC200-240V

SHF-4-10L4

AC110-120V

SHF-4-10L5

AC24V

SHF-4-10L6

AC265-277V

FA-Series

SHF-4-10FA1

AC220

50/60

6/5W

Insert Coil

SHF-4-10FA2

AC 115-120V

SHF-4-10FA3

AC100-110V

SHF-4-10FA4

AC24V

SHF-4-10FA5

AC220-240V

SHF-4-10FA6

AC265-277V

SHF-4-10FA7

AC200V

SHF-4-10FA8

DC 12V

SHF-4-10FA9

DC24V

Rated capacity at +5℃ evaporating temperature and 32℃ condensing temperature Refrigerant liquid temperature ahead of valve +28℃

1.Refrigeration Capacity
1w=3.41Btu/h
1w=0.86Kca/h
1ton(冷吨)=3.517kw

2.emperature
t(℃)=5/9×T(°F)-32
T(°F)=9/5×t(℃)=32 t(K)=273=T(℃)

3.Conversion Tabe of Pressure Units

Pressure Units


Pa


K^/cm2


Bar

mmHg

atmf

psi

IPa

1

1.01972x1 O'5

lxlO'5

7.50062x1 O'3

9.86923x1 O'6

1.45039x1 O'4

lKgf/cm2

9.80665X104

1

0.980665

735.559

0.967841

14.2235

IBar

1x10s

101972

1

750.062

0.986923

14.5039

1 mmhg(tor)

133.322

1.35951x1 O'3

1.33322x1 O'3

1

1.31579x1 O'3

0.01934

latm

1.01325x10s

1.03323

1.01325

760

1

14.6961

Ipsi

6894.7

0.07031

0.06895

51.7063

0.06805

1

4.（Length） 1 inch=25.4mm 1mm=0.0394 inch

5.（Weight） 1 Lb=454g 1kg=2.203 lb

6.（Volume） 1 Oz=29.6ml 1l=33.80 Oz



L

W

H

Cuft3

Cum3

CONTAINER SPC

20"

81

8_6"



CONTAINER

19丨41/4"

7'8"-5/8

7'10"

1170x1000



5.899m

2.352m

2.386m



33.1 x28


L

W

H

Cuft3

Cum3

CONTAINER SPC

35M

8'

8_6"



CONTAINER

347"

7_8"-2/1"

7'10"

2088x1800



10.54m

2.34m

2.39m



58.9x50


L

W

H

Cuft3

Cum3

CONTAINER SPC

40"

8'

8_6"



CONTAINER

39.5-3/8

7'8-5/8__

7'10"

2383x2000



12.02m

2.35m

2.38m



67.5x57
