•Introduction:

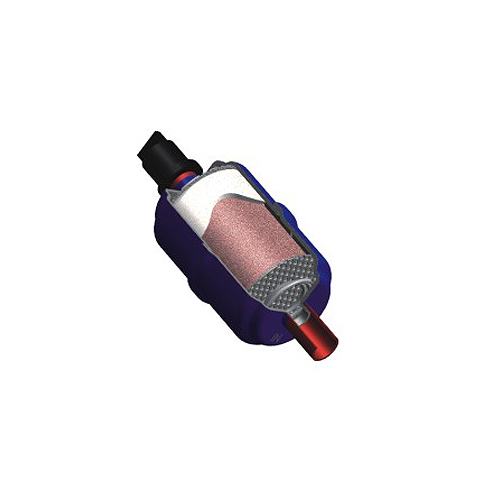

1100 series line filter drier using molecular sieve sintering filter element design, use of the molecular sieve adsorption and drying performance providing excellent drying and filtering ability, to ensure that the refrigeration system is not polluted by harmful liquid and pollutants.
•Features:
1.Compatible with HFC, CFC, HCFC as refrigerant and oil
2.High absorbenting ability and disacidifying ability
3.High filtration precision, stainless steel mesh filter and filter cotton combinations
4.Filtration precision of 25pm, can maintain effective filtering in the minimum pressure drop
5.Surface coated with corrosion resistant epoxy powder coating
6.Maximum working pressure of 45 bar
|
Model |
Connections |
Pressure Drop △p （12） =0.07bar Fluid Refrigerating Capacity (Kw) |

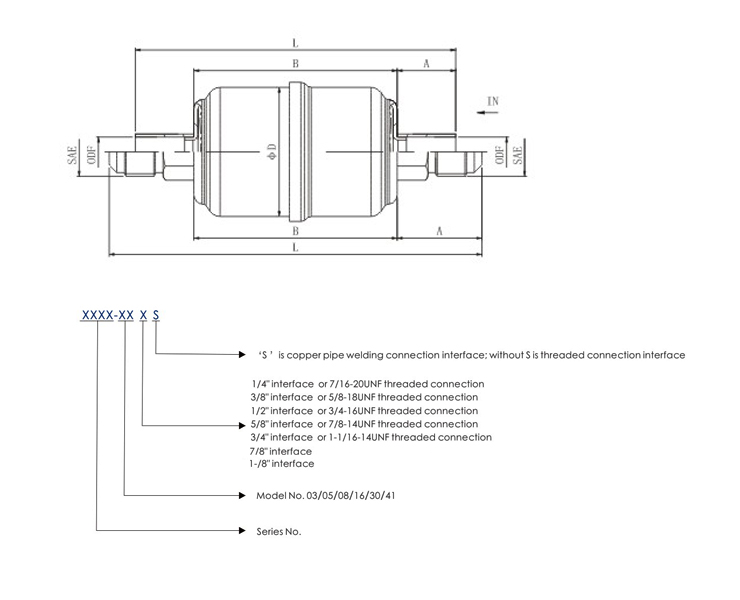

（mm）Dimensions |
Type |
||||||||
| ODF | SAE | R134a | R22/R410A | R407C | R404A/507 | R502 | A | B | D | L | ||
| 1100-032 | 1/4 | 6.7 | 7.4 | 7.0 | 5.0 | 4.6 | 22.5 | 111 | FIG1 | |||
|
1100-032S |
1/4 |
8.1 |
8.8 |
8.5 |
6.0 |
5.6 |
16 |
66 |
42 |
98 |
FIG2 |
|
|
1100-033 |
3/8 |
9.5 |
10.2 |
10.2 |
7.0 |
6.7 |
27.5 |
121 |
FIG1 |
|||
|
1100-3SS |
3/8 |
10.5 |
11.6 |
11.6 |
7.7 |
7.4 |
19 |
104 |
FIG2 |
|||
|
1100-052 |
1/4 |
7.1 |
7.7 |
7.6 |
5.3 |
5.3 |
22.5 |
121 |
FIG3 |
|||
|
1100-052S |
1/4 |
10.2 |
10.9 |
12.3 |
7.8 |
7.0 |
18 |
76 |
63.5 |
112 |
FIG4 |
|
|
1100-053 |
3/8 |
12.9 |
14.1 |
13.0 |
9.5 |
9.1 |
27.5 |
131 |
FIG3 |
|||
|
1100-053S |
3/8 |
15.8 |
17.2 |
16.5 |
11.6 |
11.2 |
19 |
114 |
FIG4 |
|||
|
1100-082 |
1/4 |
7.2 |
7.8 |
7.6 |
6.0 |
5.6 |
22.5 |
141 |
FIG3 |
|||
|
1100-082S |
1/4 |
10.9 |
11.9 |
11.6 |
7.7 |
7.3 |
18 |
132 |
FIG4 |
|||
|
1100-083 |
3/8 |
14.7 |
16.2 |
15.8 |
10.5 |
10.5 |
27.5 |
151 |
FIG3 |
|||
|
1100-083S |
3/8 |
1S.I |
16.8 |
16.5 |
10.8 |
10.8 |
19 |
96 |
63.5 |
134 |
FIG4 |
|
|
1100-084 |
1/2 |
23.5 |
25.7 |
24.9 |
17.2 |
16.7 |
30 |
156 |
FIG3 |
|||
|
1100-084S |
1/2 |
24.6 |
26.8 |
26.3 |
17.9 |
17.1 |
20 |
136 |
FIG4 |
|||
|
1100-085 |
5/8 |
34.6 |
36.8 |
36.0 |
24.2 |
23.4 |
35 |
166 |
FIG3 |
|||
|
1I00-085S |
5/8 |
38.5 |
40.4 |
39.6 |
25.7 |
24.8 |
24 |
144 |
FIG4 |
|||
|
1100-162 |
1/4 |
7.4 |
8.1 |
7.8 |
6.2 |
5.8 |
22.5 |
163 |
FIG3 |
|||
|
1100-162S |
1/4 |
13.3 |
14.7 |
14.4 |
10.8 |
10.5 |
18 |
154 |
FIG4 |
|||
|
1100-163 |
3/8 |
15.4 |
16.8 |
16.5 |
11.4 |
10.9 |
27.5 |
173 |
FIG3 |
|||
|
1100-163S |
3/8 |
17.6 |
18.7 |
18.3 |
12.8 |
12.4 |
19 |
118 |
76 |
156 |
FIG4 |
|
|
1100-164 |
1/2 |
29.8 |
31.4 |
30.6 |
21.0 |
20.4 |
30 |
178 |
FIG3 |
|||
|
1100-164S |
1/2 |
31.8 |
33.2 |
32.2 |
21.8 |
21.6 |
20 |
158 |
FIG4 |
|||
|
1100-165 |
5/8 |
41.5 |
44.8 |
44.0 |
30.3 |
29.2 |
35 |
188 |
FIG3 |
|||
|
1100-165S |
5/8 |
46.3 |
50.4 |
48.9 |
33.4 |
32.4 |
24 |
166 |
FIG4 |
|||
|
1100-166 |
3/4 |
51.6 |
52.6 |
52.0 |
36.7 |
35.4 |
40 |
198 |
FIG3 |
|||
|
1100-166S |
3/4 |
53.8 |
55.4 |
58.0 |
38.4 |
37.6 |
26 |
170 |
FIG4 |
|||
|
1100-167S |
7/8 |
56.2 |
61.2 |
59.8 |
41.6 |
39.8 |
28.5 |
175 |
FIG4 |
|||
|
1100-303 |
3/8 |
16.5 |
17.8 |
17.6 |
12.1 |
11.8 |
27.5 |
246 |
FIG3 |
|||
|
1100-303S |
3/8 |
26.8 |
29.2 |
27.8 |
17.6 |
16.8 |
19 |
229 |
FIG4 |
|||
|
1100-304 |
1/2 |
30.2 |
32.6 |
32.0 |
21.8 |
21.4 |
30 |
251 |
FIG3 |
|||
Remark：1.capacity to work status: liquid refrigerant temperature te=30℃. saturated evaporation temperature=-15℃. the pressure drop △p=0.07bar
2.It is not recommended used when pressure drop △p over than 0.14 bar.
