•Features:
1.Compatible with all CFC, HCFC and HFC refrigerants and oils.
2.High water absorbing ability and acid disaa'difying ability
3.High filtration precision, stainless steel mesh filter and filter cotton combinations
4.Rltration precision of 25 can maintain effective filtering in the minimum pressure drop
5.Shell material is stainless steel SUS 304
6.Maximum working pressure of 47 bar
|
Model |
Connedlons |
Pressure Drop △p （12） =0.07bar Fluid Refrigerating Capacity (Kw) |

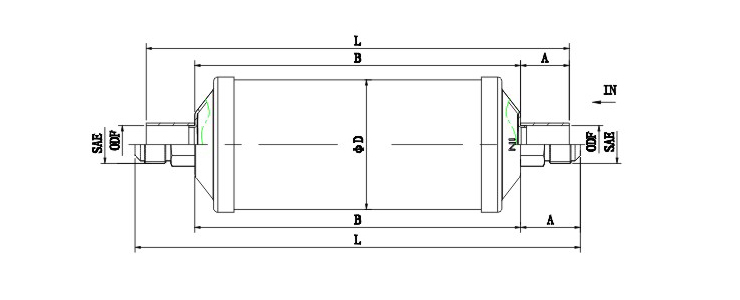

（mm）Dimensions |
Type |
||||||||
| ODF | SAE | R134a | R22/R410A | R407C | R404A/507 | R502 | A | B | D | L | ||
|
1911-052 |
1/4 |
7.1 |
7.7 |
7.6 |
5.3 |
5.3 |
22.5 |
76 |
63.5 |
121 |
FIG1 |
|
|
1911-052S |
1/4 |
10.2 |
10.9 |
12.3 |
7.8 |
7.0 |
18 |
112 |
FIG2 |
|||
|
1911-053 |
3/8 |
12.9 |
14.1 |
13.0 |
9.5 |
9.1 |
27.5 |
131 |
FIG1 |
|||
|
I911-053S |
3/8 |
15.8 |
17.2 |
16.5 |
11.6 |
11.2 |
19 |
114 |
FIG2 |
|||
|
1911-082 |
1/4 |
7.2 |
7.8 |
7.6 |
6.0 |
5.6 |
22.5 |
96 |
63.5 |
141 |
FIG1 |
|
|
1911-082S |
1/4 |
10.9 |
11.9 |
11.6 |
7.7 |
7.3 |
18 |
132 |
FIG2 |
|||
|
1911-083 |
3/8 |
14.7 |
16.2 |
15.8 |
10.5 |
10.5 |
27.5 |
151 |
FIG1 |
|||
|
1911-083S |
3/8 |
15.1 |
16.8 |
16.5 |
10.8 |
10.8 |
19 |
134 |
FIG2 |
|||
|
1911-084 |
1/2 |
23.5 |
25.7 |
24.9 |
17.2 |
16.7 |
30 |
156 |
FIG1 |
|||
|
1911-084S |
J/2 |
24.6 |
26.8 |
26.3 |
17.9 |
17.1 |
20 |
136 |
FIG2 |
|||
|
1911-085 |
5/8 |
34.6 |
36.8 |
36.0 |
24.2 |
23.4 |
35 |
166 |
FIG1 |
|||
|
1911-085S |
5/8 |
38.5 |
40.4 |
39.6 |
25.7 |
24.8 |
24 |
144 |
FIG2 |
|||
|
1911-162 |
1/4 |
7.4 |
8.1 |
7.8 |
6.2 |
5.8 |
22.5 |
118 |
76 |
163 |
FIG1 |
|
|
1911-162S |
1/4 |
13.3 |
14.7 |
14.4 |
10.8 |
10.5 |
18 |
154 |
FIG2 |
|||
|
1911-163 |
3/8 |
15.4 |
16.8 |
16.5 |
11.4 |
10.9 |
27.5 |
173 |
FIG1 |
|||
|
1911-163S |
3/8 |
17.6 |
18.7 |
18.3 |
12.8 |
12.4 |
19 |
156 |
FIG2 |
|||
|
1911-164 |
1/2 |
29.8 |
31.4 |
30.6 |
21.0 |
20.4 |
30 |
178 |
FIG1 |
|||
|
1911-164S |
1/2 |
31.8 |
33.2 |
32.2 |
21.8 |
21.6 |
20 |
158 |
FIG2 |
|||
|
1911-165 |
5/8 |
41.5 |
44.8 |
44.0 |
30.3 |
29.2 |
35 |
188 |
FIG1 |
|||
|
1911-165S |
5/8 |
A67T |
50.4 |
48.9 |
33.4 |
32.4 |
24 |
166 |
FIG2 |
|||
|
1911-166 |
3/4 |
51.6 |
52.6 |
52.0 |
36.7 |
35.4 |
40 |
198 |
FIG1 |
|||
|
1911-166S |
3/4 |
53.8 |
55.4 |
58.0 |
38.4 |
37.6 |
26 |
170 |
FIG2 |
|||
|
1911-167S |
7/8 |
56.2 |
61.2 |
59.8 |
41.6 |
39.8 |
28.5 |
175 |
FIG 2 |
|||
|
1911-303 |
3/8 |
16.5 |
17.8 |
17.6 |
12.1 |
11.8 |
27.5 |
246 |
FIG1 |
|||
|
1911-303S |
3/8 |
26.8 |
29.2 |
27.8 |
17.6 |
16.8 |
19 |
229 |
FIG2 |
|||
|
1911-304 |
1/2 |
30.2 |
32.6 |
32.0 |
21.8 |
21.4 |
30 |
251 |
FIG1 |
|||
|
1911-304S |
1/2 |
31.6 |
33.4 |
33.1 |
22.5 |
21.8 |
20 |
191 |
76 |
231 |
FIG2 |
|
|
1911-305 |
5/8 |
483 |
52.8 |
51.8 |
35.2 |
34.2 |
35 |
261 |
FIG1 |
|||
|
1911-305S |
5/8 |
51.2 |
55.2 |
54.2 |
37.1 |
36.2 |
24 |
239 |
FIG2 |
|||
|
1911-306 |
3/4 |
52.8 |
58.4 |
56.8 |
39.2 |
38.3 |
40 |
271 |
FIG1 |
|||
|
1911-306S |
3/4 |
56.4 |
60.2 |
59.2 |
40.5 |
39.1 |
26 |
243 |
FIG2 |
|||
|
1911-307S |
7/8 |
62.2 |
66.5 |
65.2 |
44.6 |
43.4 |
28.5 |
248 |
FIG2 |
|||
|
1911-309S |
1-1/8 |
87.8 |
94.8 |
93.3 |
63.4 |
61.8 |
29 |
249 |
FIG2 |
|||
|
1911-413 |
3/8 |
16.8 |
18.2 |
17.8 |
12.7 |
12.3 |
27.5 |
194 |
89 |
249 |
FIG1 |
|
|
1911-414 |
1/2 |
34.5 |
37.2 |
36.6 |
25.1 |
24.4 |
30 |
254 |
FIG1 |
|||
|
1911-414S |
1/2 |
37.8 |
40.8 |
40.2 |
27.6 |
26.2 |
20 |
234 |
FIG2 |
|||
|
1911-415 |
5/8 |
55.2 |
59.2 |
58.4 |
39.8 |
38.6 |
35 |
264 |
FIG1 |
|||
|
1911-415S |
5/8 |
59.2 |
63.0 |
61.4 |
42.3 |
40.8 |
24 |
242 |
FIG2 |
|||
|
1911-416 |
3/4 |
62.8 |
68.6 |
67.2 |
45.6 |
43.1 |
40 |
274 |
FIG1 |
|||
|
1911-416S |
3/4 |
66.8 |
72.4 |
70.8 |
48.2 |
47.4 |
26 |
246 |
FIG2 |
|||
|
1911-417S |
7/8 |
71.6 |
77.5 |
76.4 |
51.8 |
50.4 |
28.5 |
251 |
FIG2 |
|||
|
1911-419S |
1-1/8 |
88.8 |
96.0 |
94.6 |
64.4 |
62.4 |
29 |
252 |
FIG2 |
|||
Remark：1.capacity to work status: liquid refrigerant temperature te=30℃. saturated evaporation temperature=-15℃. the pressure drop △p=0.07bar
2.It is not recommended used when pressure drop △p over than 0.14 bar.
