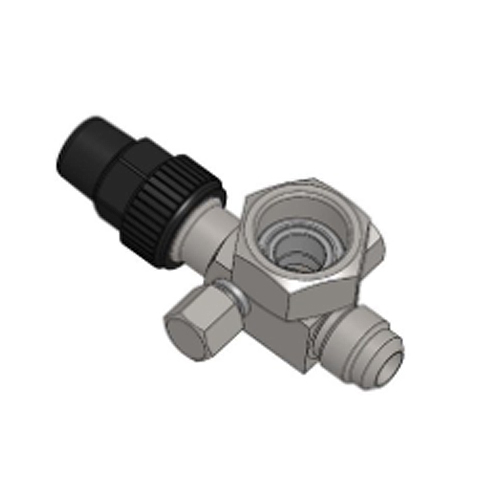

8302 Series Steel Rotolock Valve (Flare Connetion)

8302 Series Steel Rotolock Valve (Flare Connetion)

8302 Series Steel Rotolock Valve (Flare Connetion)

Introduction:
Steel rotalock valve is are installed in the refrigeration system and air-conditioning industry for adjusting the flow rate, oepning & closing the flow and also be a service valve.
Please using screw connection and make sure the spindle is open.
Supplied with Teflon washer ,By compressing a teflon washer a seal is created that can maintain its integrity with both large changes in temperature and constant vibration.

Contact Us

Details

Feature:
1.Max. working pressure: 4.2MPa
2.Allowable operating temperature : -40℃ to 120℃ 3:Compatible with all HCFC and HFC refrigerants, along with their associated oils
4.Also allows them to be used for R410A and sub-critical CO2 applications
5.100% leakage testing
6.The stem seal is made from graphite


Model

Body

A Rotolock Connection

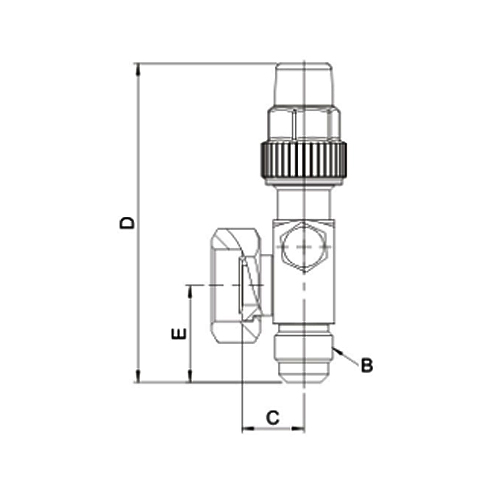

 Dimension

B

D

C

E

8302-01

20

3/4"-16UNF

1/4"SAE

19

98

31

8302-02

20

3/8"SAE

19

100

32.5

8302-03

20

1/ZSAE

19

100

32.5

8302-04

20

1"-14UNS

3/8"SAE

19

105

31.5

8302-05

20

1/2"SAE

19

105.5

32

8302-06

22

5/8"SAE

20

116

37.5

8302-07

22

3/4"SAE

20

121

43

8302-08

30

l-1/4"-12UNF

5/8"SAE

26.7

135

42.5

8302-09

30

3/4"SAE

26.7

139.5

47.5

8302-10

30

7/8"SAE

26.7

139.5

47.5
