Introduction:

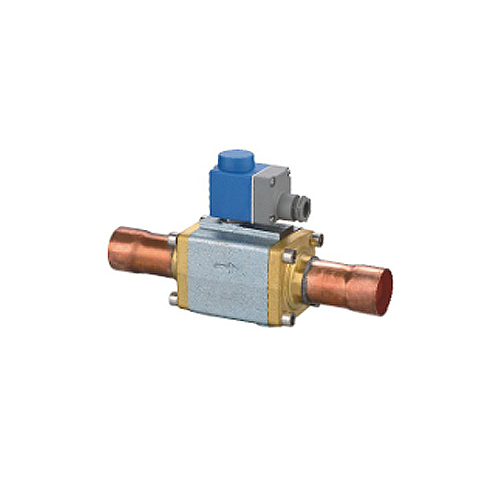

Solenoid Valves is an automatic control parts used in refrigeration system to control the refrigerant to pass or not pass,the valve is widely used in compressor group, central air-conditioning,cold-storage equipment and bus air-conditioning system.solenoid valves widely used for refrigeration, it has A.C. And D.C two types. Suitable for all fluorinated refrigerants ,extended ends for soldering make installation easy. It is not necessary to dismantle the valve when soldering .
Feature:
1.Compatible with all CFC, HCFC and HFC refrigerants
2.Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
3.Wide choice of coils for A.C.and D.C.
4.PVR are also available with flange connections
5.Copper connection size 1/4" through 2-1/8"
Specifications Of Coils:
Ambient temperature -40~ +80℃
Allowed range of voltage changer:+10~-15%
Voltage 220-230V AC; Frequency 50/60Hz
Protect level IP65
Model |
Ap (bar) The pressure diference when the solenoid can be activated, usir^ standard loop |
(t) Media temperature |
MWP |
m3/hr) KV Value |
||
Min. |
The Max. w |
oridng pressure diference,MOPD (Liquid) |
||||
10W (AC) |
12W(AC) |
|||||
8117-04 |
0 |
21 |
25 |
-40~+105 |
3.5 |
0.27 |
8117-06 |
0.05 |
21 |
25 |
-40~+105 |
3.5 |
0.8 |
8117-08 |
0.05 |
21 |
25 |
-40~+105 |
3.5 |
1.9 |
8117-10 |
0.05 |
21 |
25 |
-40~+105 |
3.5 |
2.6 |
8117-14 |
0.05 |
21 |
25 |
-40~+105 |
3.2 |
5.0 |
8117-18 |
0.05 |
21 |
25 |
-40~+105 |
3.2 |
6.0 |
8117-22 |
0.2 |
21 |
25 |
-40~+105 |
3.2 |
10.0 |
8117-26 |
0.2 |
21 |
25 |
-40~+105 |
3.2 |
16.0 |
8117-34 |
0.2 |
21 |
25 |
-40~+105 |
3.2 |
25.0 |
1.The KV value is the water flow in m³/h at a pressure drop across valve of 0.1mpa ,ρ= 1000 kg/m³
2.The MOPD is around 0.1Mpa in Suction Line
Model |
(kW ) Liquid refiigerating capacity |
|||||||||||
liquid line |
Suction Line |
HotGas |
||||||||||
R22 |
R134a |
R404A/R507 |
R407C |
R22 |
R134a |
R404A/R507 |
R407C |
R22 |
R134a |
R404A/R507 |
R407C |
|
8117-04 |
5.40 |
5.00 |
3.80 |
5.08 |
2.50 |
2.00 |
2.00 |
2.43 |
||||
8117-06 |
16.10 |
16.1 |
11.20 |
15.13 |
1.80 |
1.30 |
1.60 |
1.60 |
7.40 |
5.90 |
6.00 |
7.18 |
8117-08 |
38.20 |
35.30 |
26.70 |
35.91 |
4.30 |
3.10 |
3.96 |
3.96 |
17.50 |
13.90 |
14.30 |
16.98 |
8117-10 |
52.30 |
48.30 |
36.50 |
49.16 |
5.90 |
4.20 |
5.30 |
5.43 |
24.00 |
19.00 |
19.60 |
23.28 |
8117-14 |
101.00 |
92.80 |
70.30 |
94.90 |
11.40 |
8.10 |
10.20 |
10.49 |
46.20 |
36.60 |
37.70 |
44.81 |
8117-18 |
121.00 |
112.00 |
84.30 |
113.70 |
13.70 |
9.70 |
12.20 |
12.60 |
55.40 |
43.90 |
45.20 |
53.74 |
8117-22 |
201.00 |
186.00 |
141.00 |
188.90 |
22.80 |
16.30 |
20.40 |
20.98 |
92.30 |
73.20 |
75.30 |
89.53 |
8117-26 |
322.00 |
297.00 |
252.00 |
302.50 |
36.50 |
26.10 |
32.60 |
33.58 |
148.00 |
117.00 |
120.00 |
143.56 |
8117-34 |
503.00 |
464.00 |
351.00 |
472.70 |
57.00 |
40.80 |
51.00 |
52.44 |
231.00 |
183.00 |
188.00 |
224.07 |
Rated liquid and suction vapour capacity is based on evaporating tempertature t=-10℃
liquid temperature ahead of valve t= +25℃,and pressure drop in valve △p=0.015Mpa Rated hot gas capacity is based on condensing temperature tc=+40℃ ; pressure drop across valve △p=0.08 Mpa : hot gas temperature t=+65℃ ;and subcooling of refrigetant △tsub=4K

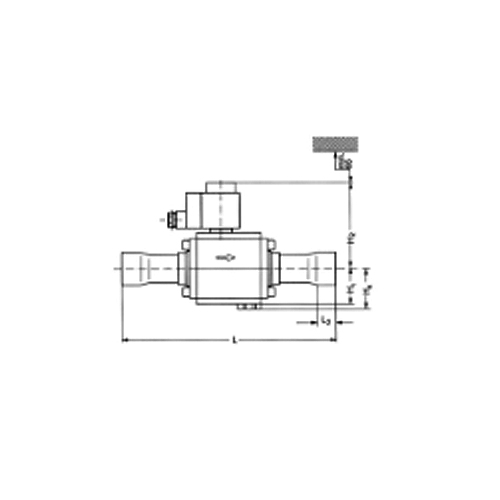

Part No. |
Model |
Connection(in) |
HI |
H2 |
H4 |
L |
L2 |
Drawing |
||||||
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
|||
8117-04 |
EVR3 |
1/4" |
6 |
0.5 |
14 |
2.8 |
71 |
- |
- |
4.0 |
102 |
0.3 |
7 |
FIG1 |
8117-06 |
3/8" |
10 |
0.5 |
14 |
2.9 |
73 |
- |
- |
4.6 |
117 |
0.4 |
10 |
||
8117-06 A |
EVR6 |
3/8" |
10 |
0.5 |
14 |
3.1 |
79 |
- |
- |
4.4 |
111 |
0.4 |
10 |
|
8117-08 |
1/2" |
12.8 |
0.6 |
14 |
3.1 |
79 |
- |
- |
5.0 |
127 |
0.4 |
10 |
||
8117-08 A |
EVR10 |
1/2" |
12.8 |
0.6 |
16 |
3.1 |
79 |
- |
- |
5.0 |
127 |
0.4 |
10 |
|
8117-10 |
5/8" |
16.0 |
0.6 |
16 |
3.1 |
79 |
- |
- |
6.3 |
160 |
0.5 |
12 |
||
8117-1OA |
EVR15 |
5/8" |
16.0 |
0.7 |
19 |
3.4 |
86 |
- |
- |
6.9 |
176 |
0.5 |
12 |
|
8117-14 |
7/8" |
22.0 |
0.7 |
19 |
3.4 |
86 |
- |
- |
6.9 |
176 |
0.7 |
17 |
||
8117-14A |
EVR20 |
7/8" |
22.0 |
0.8 |
20 |
3.5 |
90 |
- |
- |
7.5 |
191 |
0.7 |
17 |
|
8117-18 |
1-1/8" |
28.8 |
0.8 |
20 |
3.5 |
90 |
- |
- |
8.4 |
214 |
0.8 |
22 |
||
8117-22 |
EVR22 |
1-3/8" |
35.0 |
0.8 |
20 |
3.5 |
90 |
2.8 |
72 |
11.1 |
281 |
1.0 |
25 |
|
8117-18A |
EVR25 |
1-1/8" |
28.8 |
1.5 |
38 |
5.4 |
138 |
2.8 |
72 |
10 |
256 |
0.8 |
22 |
FIG 2 |
8117-22 A |
1-3/8" |
35.0 |
1.5 |
38 |
5.4 |
138 |
2.1 |
53 |
11 |
281 |
1.0 |
25 |
||
8117-22B |
EVR32 |
1-3/8" |
35.0 |
1.9 |
47 |
4.4 |
111 |
2.1 |
53 |
11 |
281 |
1.0 |
25 |
FIG3 |
8117-26 |
1-5/8" |
42.0 |
1.9 |
47 |
4.4 |
111 |
2.1 |
53 |
11 |
281 |
1.1 |
29 |
||
8117-26B |
EVR40 |
1-5/8" |
42.0 |
1.9 |
47 |
4.4 |
111 |
2.1 |
53 |
11 |
281 |
1.1 |
29 |
|
8117-34 |
2-1/8" |
54.0 |
1.9 |
47 |
4.4 |
111 |
2.1 |
53 |
11 |
281 |
1.3 |
34 |
