6001 Series HangF Oil Receiver

Introduction:

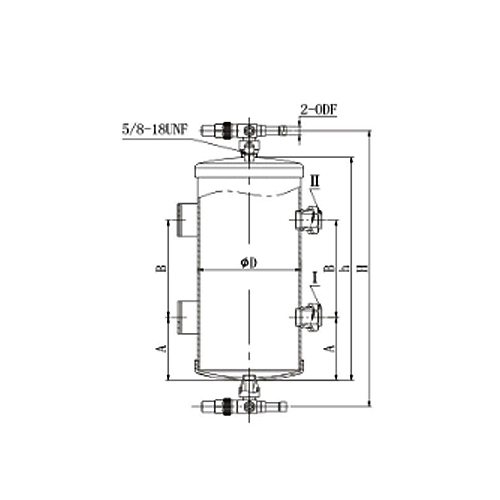

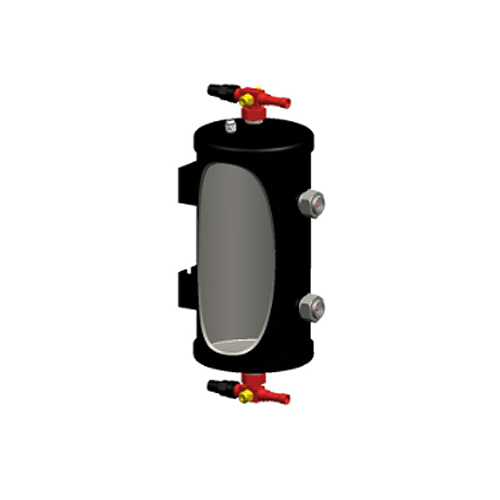

Due to system design,loading and defrost cycles, varying amounts of oil can be returned by oil separator. That's the reason a safe oil storage is required for the operation of oil control system.The oil receiver is the container of spare oil which has sight glass ports to observe the oil level in the device.The valve on the top of it gets oil from oil separator.The valve on the bottom of it can distribute the oil to oil regulator.There is a 1/4 inch threaded connection on the side of valve to increase or decrease spare oil.High pressure gas returns with the oil from the oil separator to it. The pressure would cause negative effects to oil controller.To prevent this phenomenon,a vent line is installed from the top of the oil receiver to suction line.This line permits the pressure in the oil receiver to be approximately same as suction line and compressor crankcase.
