441X Series Heat Exchanger Accumulators & Liquid Receivers F1G2

Introduction:
HangF gas liquid regenerator is a accumulator and the heat exchanger of liquid receiver.Can effectively control system has the function of liquid flow, can play a cooling ability, to ensure the best operation of the compressor.

Details

Features:
1.Save energy, the old low pressure due to the drop of water waste liquid separation degree full recovery to the high pressure accumulator and enhance the degree of cold liquid, saves the electricity
2.Enhance refrigeration effect, because of the high pressure liquid receiver and low pressure in accumulator of refrigerant in heat exchange, make the circulation of the refrigerant enthalpy value increases, when the evaporation can play to the largest cooling
ability
3.Avoid fluid compressed to ensure that no liquid back into the compressor in compression
4. No drop of water, heat preservation;No water lubrication, moldy stink pollution environment phenomenon
5.Save installation space, improve the whole machine is beautiful, and adding value
6.HangF can provide different designs according to the special requirements of the customers
7. Maximum working pressure 35 bar

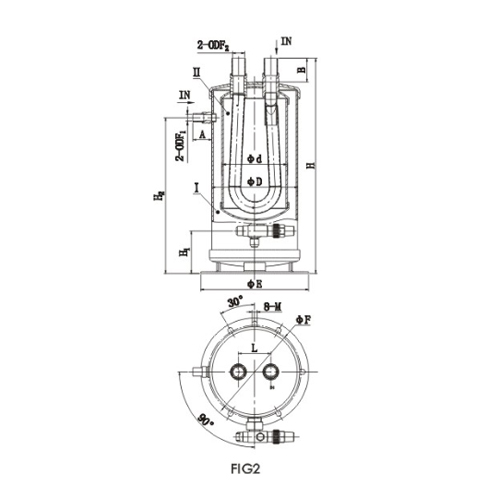

Model	Horsepower (HP)	Evaporation temperature (℃)	Hight and low pressure container			Hight pressure welding ODF（in）2	pressure wdding ODF (in) 2	(mm)Dimensions											Type
			High pKsane comaina		Low piesuie container			∅D	∅d	A	B	L	Hi	h2	H	OF	OE	M
			Vnliimp	resecvior Vdume	Volume
4410-341207	1.0	+5	1.98L	1.20L	0.65L	3/8	1/2	122	89	33	34	50	58	144	239	/	/	M10	FIG1
	0.75	-10
	0.7	-30
4410-351708	2.0	+5	2.65L	1.70L	0.80L	3/8	5/8	122	89	33	38	50	58	207	307	/	/	M10	FIG1
	1.5	-10
	1.0	-30
4410-373224	5.0	+5	5.96L	3.20L	2.40L	3/8	7/8	159	122	33	45	60	60	280	385	/	/	M10	FIG1
	3.0	-10
	2.0	-30
4410-341207A	1.0	+5	1.98L	1.20L	0.65L	3/8	1/2	122	89	33	34	50	67	153	249	138	160	cp9*14	FIG 3
	0.75	-10
	0.7	-30
4410-351708A	2.0	+5	2.65L	1.70L	0.80L	3/8	5/8	122	89	33	38	50	69	217	317	138	160	cp9*14	FIG 3
	1.5	-10
	1.0	-30
4410-373224A	5.0	+5	5.96L	3.20L	2.40L	3/8	7/8	159	122	33	45	60	74	294	399	172	200	cp9*14	FIG 3
	3.0	-10
	2.0	-30
4410-496040A	10.0	+5	10.6L	6.0L	4.0L	1/2	1-1/8	219	159	35	45	85	100	267	401	219	250	cp11*22	FIG 3
	7.5	-10
	5.0	-30
	15.0	+5
44105117250A	10.0	-10	12.7L	7.2L	5.0L	5/8	1-3/8	219	159	40	50	85	105	322	466	219	250	cp11*22	FIG 3
	7.5	-30
441O5138055A	20.0	+5	14.3L	8.0L	5.5L	5/8	1-5/8	219	159	40	54	85	105	367	515	219	250	cp11*22	FIG 3
	15.0	-10
	10.0	-30
44107171210A	40.0	+5	23.1 L	12.0L	10.0L	7/8	2-1/8	273	219	47	55	127	142	358	545	273	305	cp11*22	FIG 3
	30.0	-10
	20.0	-30
4415-341207A	1.0	+5	1.98L	1.20L	0.65L	3/8	1/2	122	89	33	34	50	70	158	249	138	160	cp9*14	FIG 2
	0.75	-10
	0.7	-30
4415-351708A	2.0	+5	2.65L	1.70L	0.80L	3/8	5/8	122	89	33	38	50	70	222	317	138	160	cp9*14	FIG 2
	1.5	-10
	1.0	-30
4415-373224A	5.0	+5	5.96L	3.20L	2.40L	3/8	7/8	159	122	33	45	60	78	289	399	172	200	cp9*14	FIG 2
	3.0	-10
	2.0	-30
4415-496040A	10.0	+5	10.6L	6.0L	4.0L	1/2	1-1/8	219	159	35	45	85	100	267	401	219	250	cp11*22	FIG 2
	7.5	-10
	5.0	-30
4415-5117250A	15.0	+5	12.7L	7.2L	5.0L	5/8	1-3/8	219	159	40	50	85	105	322	466	219	250	cp11*22	FIG 2
	10.0	-10
	7.5	-30
4415-5138055A	20.0	+5	14.3L	8.0L	5.5L	5/8	1-5/8	219	159	40	54	85	105	367	515	219	250	cp11*22	FIG 2
	15.0	-10
	10.0	-30
4415-7171210A	40.0	+5	23.1 L	12.0L	10.0L	7/8	2-1/8	273	219	47	55	127	142	358	545	273	305	cp11*22	FIG 2
	30.0	-10
	20.0	-30
