•Features:
1.1971 series have copper ODF connection and SAE connection are available

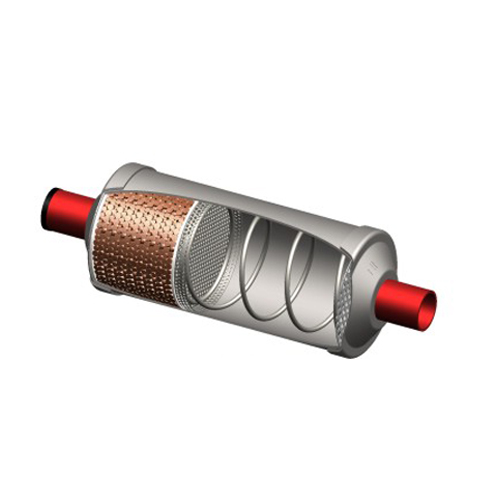

2.Molecular sieve by using spherical particles XH-11
3.Using twostage filter design
4.Filtration precision of 20 pm, can maintain effective filtering in the minimum pressure drop
5.Shell material is stainless steel SUS 304
6.Maximum working pressure of 47 bar
7.Applicable temperature -40°C〜+120°C
Model |
Connedlons |
Pressure Drop △p (12) =0.07bar Fluid Refrigerating Capacity (Kw) |

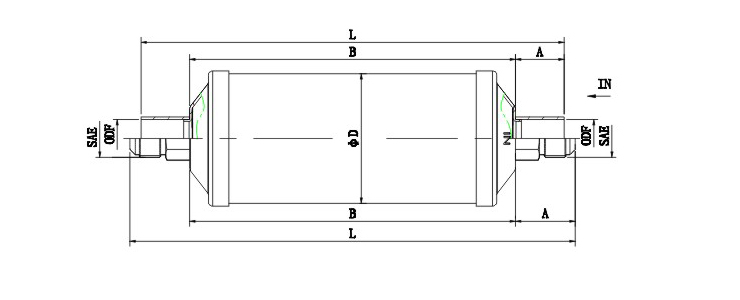

(mm)Dimensions |
Type |
||||||||
ODF | SAE | R134a | R22/R410A | R407C | R404A/507 | R502 | A | B | D | L | ||
1971-052 |
1/4 |
7.4 |
8.1 |
7.7 |
5.3 |
5.3 |
22.5 |
76 |
63.5 |
121 |
F1G1 |
|
1971-052S |
1/4 |
11.6 |
12.6 |
12.2 |
8 4 |
8.1 |
18 |
112 |
F1G2 |
|||
1971-053 |
3/8 |
12.3 |
13.3 |
12.9 |
8.8 |
8.8 |
27.5 |
131 |
F1G1 |
|||
1971-053S |
3/8 |
15.4 |
16.8 |
16 4 |
11.2 |
10.8 |
19 |
114 |
F1G2 |
|||
1971-082 |
1/4 |
8.1 |
8.8 |
8.4 |
6.0 |
5.6 |
22.5 |
96 |
63.5 |
141 |
F1G1 |
|
1971-082S |
1/4 |
10.9 |
11.9 |
11.6 |
7.7 |
7.7 |
18 |
132 |
F1G2 |
|||
1971-083 |
3/8 |
14.0 |
15.1 |
15.1 |
10.2 |
9.8 |
27.5 |
151 |
F1G1 |
|||
1971-083S |
3/8 |
15.8 |
17.2 |
16.9 |
11.6 |
11.3 |
19 |
134 |
FIG2 |
|||
1971-084 |
1/2 |
23.5 |
25.6 |
25.0 |
17.2 |
16.5 |
30 |
156 |
F1G1 |
|||
1971-084S |
1/2 |
25.0 |
27.1 |
26.4 |
18.0 |
17.6 |
20 |
136 |
F1G2 |
|||
1971-162 |
1/4 |
8.1 |
8.8 |
8.4 |
6.0 |
5.6 |
22.5 |
120 |
63.5 |
165 |
F1G1 |
|
1971-162S |
1/4 |
10.9 |
12.0 |
11.6 |
7.7 |
7.7 |
18 |
156 |
F1G2 |
|||
1971-163 |
3/8 |
13.7 |
14.8 |
14.4 |
9.9 |
9.5 |
27.5 |
175 |
F1G1 |
|||
1971-163S |
3/8 |
15.5 |
16.9 |
16.4 |
11.3 |
10.9 |
19 |
158 |
F1G2 |
|||
1971-164 |
1/2 |
27.8 |
30.8 |
30.3 |
18.0 |
17.3 |
30 |
180 |
F1G1 |
|||
1971-164S |
1/2 |
29.9 |
32.4 |
31.7 |
21.8 |
21.1 |
20 |
160 |
F1G2 |
|||
1971-165 |
5/8 |
34.1 |
37.0 |
36.3 |
24.6 |
23.9 |
35 |
190 |
F1G1 |
|||
1971-165S |
5/8 |
35.6 |
38.4 |
37.6 |
25.7 |
25.0 |
24 |
168 |
F1G2 |
|||
1971-166 |
3/4 |
46.5 |
49.6 |
48.9 |
36.4 |
35.6 |
40 |
200 |
F1G1 |
|||
1971-166S |
3/4 |
48.6 |
55.8 |
54.7 |
37.8 |
36.9 |
26 |
172 |
F1G2 |
|||
1971-167S |
7/8 |
54.6 |
59.1 |
58.1 |
39.4 |
38.4 |
28.5 |
177 |
F1G2 |
|||
1971-303 |
3/8 |
15.1 |
16.5 |
16.2 |
10.9 |
10.6 |
27.5 |
246 |
F1G1 |
|||
1971-303S |
3/8 |
22.2 |
23.9 |
23.6 |
16.2 |
15.5 |
19 |
229 |
F1G2 |
|||
1911-304 |
1/2 |
28.5 |
30.9 |
30.3 |
20.8 |
20.1 |
30 |
251 |
F1G1 |
|||
1971-304S |
1/2 |
35.2 |
38.0 |
37.3 |
25.3 |
24.6 |
20 |
191 |
76 |
231 |
F1G2 |
|
1971305 |
5/8 |
37.3 |
40.5 |
39.8 |
27.1 |
26.4 |
35 |
261 |
F1G1 |
|||
1971-305S |
5/8 |
44.4 |
47.8 |
46.8 |
30.8 |
26.4 |
24 |
239 |
F1G2 |
|||
1971-306 |
3/4 |
49.9 |
53.1 |
52.4 |
34.1 |
33.2 |
40 |
271 |
F1G1 |
|||
1971-306S |
3/4 |
52.1 |
56.3 |
55.3 |
37.6 |
36.6 |
26 |
243 |
F1G2 |
|||
1971-307S |
7/8 |
59.1 |
64.0 |
63.0 |
42.9 |
41.5 |
28.5 |
248 |
F1G2 |
|||
1971-309S |
1-1/8 |
68.9 |
74.6 |
73.2 |
50.0 |
48.6 |
29 |
249 |
F1G2 |
|||
1971-413 |
3/8 |
15.1 |
16.5 |
16.2 |
10.9 |
10.6 |
27.5 |
194 |
89 |
249 |
F1G1 |
|
1971-414 |
1/2 |
36.6 |
39.8 |
39.1 |
26.4 |
25.7 |
30 |
254 |
F1G1 |
|||
1971-414S |
1/2 |
38.1 |
41.2 |
40.5 |
27.5 |
26.7 |
20 |
234 |
F1G2 |
|||
1971-415 |
5/8 |
42.2 |
45.8 |
45.1 |
30.6 |
29.9 |
35 |
264 |
F1G1 |
|||
1971-415S |
5/8 |
52.4 |
55.6 |
55.0 |
40.8 |
40.2 |
24 |
242 |
F1G2 |
|||
1971-416 |
3/4 |
62.2 |
68.4 |
67.2 |
45.8 |
45.3 |
40 |
274 |
F1G1 |
|||
1971-416S |
3/4 |
63.8 |
70.2 |
69.6 |
48.6 |
47.8 |
26 |
246 |
F1G2 |
|||
1971-417S |
7/8 |
71.5 |
77.0 |
76.0 |
51.7 |
50.3 |
28.5 |
251 |
F1G2 |
|||
1971-419S |
1-1/8 |
97.5 |
105.6 |
103.4 |
70.8 |
68.6 |
29 |
252 |
F1G2 |
|||
1971-757S |
7/8 |
78.1 |
84.8 |
83.1 |
56.7 |
54.9 |
28.5 |
343 |
89 |
400 |
F1G2 |
|
1971-759S |
1-1/8 |
115.1 |
124.6 |
122.5 |
83.4 |
80.9 |
29 |
401 |
F1G2 |
