•Introduction:

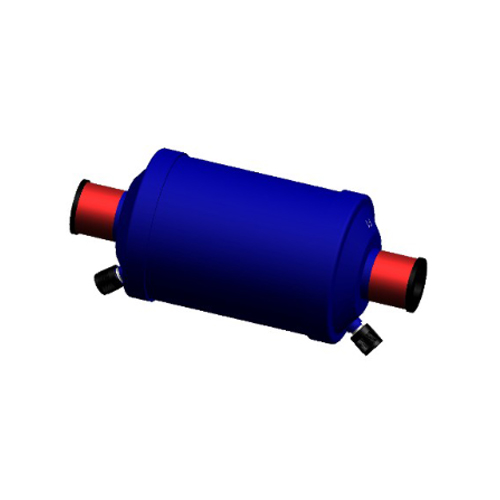

1400 series suction line filter adopt suction filter, large shell diameter, internal refrigerant diffusion tube design, reduce the installation length, large core for maximum efficiency, provide big filter area, the divergent tube refrigerant dispersed evenly to avoid losses, sufficient and effective use of suction filter filtration, effective protection of compressor.
•Features:
1.The shortest length has to adapt to the compact installation
2.Low pressure drop, increase the effective filtration area with pleated filter design
3.Copper to take over the welded joint
4.Two repair valves, simplify the pressure drop measurement
5.Filtration precision 40pm
6.Surface coating with corrosion resistant epoxy powder coating, match the requirement of 500 hours salt spray testing 7.Maximum working pressure 35 bar
|
Model |
ODF（in） |
Filter paperarea（in2） |

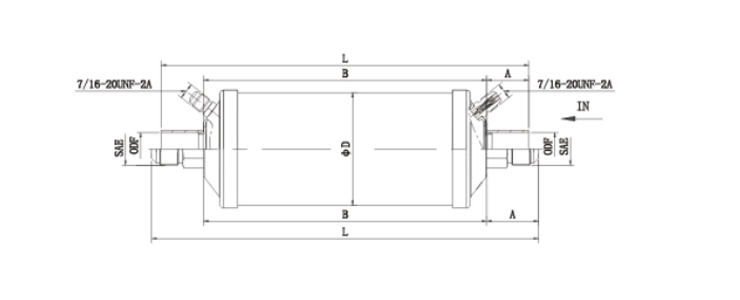

（mm）Dimensions |
|||
| A | B | D | L | |||
| 1400-283T | 3/8 | 83 | 19 |
112 |
89 |
150 |
|
1400-284T |
1/2 |
20 |
152 |
|||
|
1400-285T |
5/8 |
24 |
160 |
|||
|
1400-286T |
3/4 |
141 |
26 |
152 |
89 |
204 |
|
1400-287T |
7/8 |
28.5 |
209 |
|||
|
1400-289T |
1-1/8 |
29 |
210 |
|||
|
1400-281 IT |
1-3/8 |
219 |
32 |
205 |
89 |
269 |
|
1400-2813T |
1-5/8 |
32 |
269 |
|||
