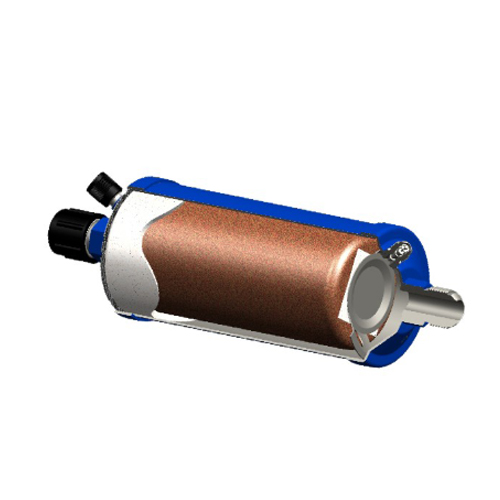

•Introduction:
1300 Series burned filter drier used for fluoride refrigerants refrigeration or air conditioning system of air suction pipe, filters the solid dry filter by 47% of the molecular sieve and the activity of 48% aluminum and 5% of activated carbon, can effectively absorb acid and water in the system, to absorb the compressor motor bums out of harmful substances, to ensure that the entire refrigeration or air conditioning system from damage.On both ends of the two pressure gauges interface are easy to measure differential pressure at the ends of the filter dryer.
•Features:
1.It has two access hole pressure data read
2.40qm filter can keep high efficiency filter in minimum pressure drop
3.High absorbent and strong disacidify ability
4.Surface coating with corrosion resistant epoxy powder coating, match the requirement of 500 hours salt spray testing 5.Maximum working pressure 42 bar
|
Model |
Connedlons |
Pressure Drop △p （12） =0.07bar Fluid Refrigerating Capacity (Kw) |

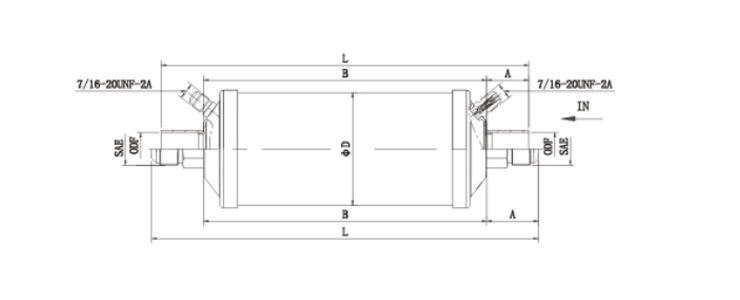

（mm）Dimensions |
Type | ||||||
| ODF | SAE | R22 | R410 | R407C | A | B | D | L | ||
| 1300-052 | 1/4 | 5.0 | 3.3 | 3.3 | 22.5 | 76 | 63.5 | 121 | F1G1 | |
|
1300-052S |
1/4 |
5.0 |
3.3 |
3.3 |
18 |
112 |
F1G2 |
|||
|
1300-053 |
3/8 |
5.3 |
3.5 |
3.5 |
27.5 |
131 |
F1G1 |
|||
|
1300-053S |
3/8 |
5.3 |
3.5 |
3.5 |
19 |
114 |
F1G2 |
|||
|
1300-082 |
1/4 |
6.0 |
3.5 |
4.2 |
22.5 |
96 |
63.5 |
141 |
F1G1 |
|
|
1300-082S |
1/4 |
6.0 |
3.5 |
4.2 |
18 |
132 |
F1G2 |
|||
|
1300-083 |
3/8 |
7.6 |
4.2 |
4.6 |
27.5 |
151 |
F1G1 |
|||
|
1300-083S |
3/8 |
7.6 |
4.2 |
4.6 |
19 |
134 |
F1G2 |
|||
|
1300-084 |
1/2 |
9.8 |
5.5 |
8.0 |
30 |
156 |
F1G1 |
|||
|
1300-084S |
1/2 |
9.8 |
5.5 |
8.0 |
20 |
136 |
F1G2 |
|||
|
1300-085 |
5/8 |
14.5 |
6.8 |
9.5 |
35 |
166 |
F1G1 |
|||
|
1300-085S |
5/8 |
15.0 |
7.3 |
10.0 |
24 |
144 |
F1G2 |
|||
|
1300-162 |
1/4 |
10.2 |
5.0 |
7.5 |
22.5 |
118 |
76 |
163 |
F1G1 |
|
|
1300-162S |
1/4 |
10.2 |
5.0 |
7.5 |
18 |
154 |
F1G2 |
|||
|
1300-163 |
3/8 |
13.0 |
5.0 |
8.0 |
27.5 |
173 |
F1G1 |
|||
|
1300-163S |
3/8 |
13.0 |
5.0 |
8.0 |
19 |
156 |
F1G2 |
|||
|
1300-164 |
1/2 |
15.0 |
6.0 |
8.5 |
30 |
178 |
F1G1 |
|||
|
1300-164S |
1/2 |
15.0 |
6.0 |
8.5 |
20 |
158 |
F1G2 |
|||
|
1300-165 |
5/8 |
19.8 |
9.5 |
13.0 |
35 |
188 |
F1G1 |
|||
|
1300-165S |
5/8 |
19.8 |
9.5 |
13.0 |
24 |
166 |
F1G2 |
|||
|
1300-166 |
3/4 |
21.4 |
10.3 |
13.8 |
40 |
198 |
F1G1 |
|||
|
1300-166S |
3/4 |
22.0 |
12.0 |
15.0 |
26 |
170 |
F1G2 |
|||
|
1300-167S |
7/8 |
24.0 |
13.0 |
17.0 |
28.5 |
175 |
F1G2 |
|||
|
1300-303 |
3/8 |
14.5 |
7.0 |
9.0 |
27.5 |
191 |
76 |
246 |
F1G1 |
|
|
1300-303S |
3/8 |
14.5 |
7.0 |
9.0 |
19 |
229 |
F1G2 |
|||
|
1300-304 |
1/2 |
16.8 |
9.8 |
14.2 |
30 |
251 |
F1G1 |
|||
|
1300-304S |
1/2 |
17.4 |
10.6 |
14.6 |
20 |
231 |
F1G2 |
|||
|
1300-305 |
5/8 |
18.0 |
11.8 |
15.0 |
35 |
261 |
F1G1 |
|||
|
1300-305S |
5/8 |
18.6 |
12.4 |
15.2 |
24 |
239 |
F1G2 |
|||
|
1300-306 |
3/4 |
22.0 |
14.0 |
19.0 |
40 |
271 |
F1G1 |
|||
|
1300-306S |
3/4 |
22.6 |
14.6 |
19.6 |
26 |
243 |
F1G2 |
|||
|
1300-307S |
7/8 |
26.0 |
16.0 |
22.0 |
28.5 |
248 |
F1G2 |
|||
|
1300-309S |
1-1/8 |
30.8 |
20.2 |
26.5 |
29 |
249 |
F1G2 |
|||
|
1300-413 |
3/8 |
19.0 |
14.0 |
17.0 |
27.5 |
194 |
89 |
249 |
F1G1 |
|
|
1300-414 |
1/2 |
24.6 |
14.5 |
22.4 |
30 |
254 |
F1G1 |
|||
|
1300-414S |
1/2 |
25.2 |
14.8 |
23.2 |
20 |
234 |
F1G2 |
|||
|
1300-415 |
5/8 |
26.0 |
15.5 |
24.0 |
35 |
264 |
F1G1 |
|||
|
1300-415S |
5/8 |
26.5 |
16.0 |
24.5 |
24 |
242 |
F1G2 |
|||
|
1300-416 |
3/4 |
29.0 |
17.0 |
24.8 |
40 |
274 |
F1G1 |
|||
|
1300-416S |
3/4 |
29.6 |
17.6 |
25.1 |
26 |
246 |
F1G2 |
|||
|
1300-417S |
7/8 |
30.0 |
18.4 |
25.5 |
28.5 |
251 |
F1G2 |
|||
|
1300-419S |
1-1/8 |
32.0 |
21.2 |
27.0 |
29 |
252 |
F1G2 |
|||
Remark：1.capacity to work status: liquid refrigerant temperature te=30℃. saturated evaporation temperature=-15℃. the pressure drop △p=0.07bar
2.It is not recommended used when pressure drop △p over than 0.14 bar.
