•Introduction:

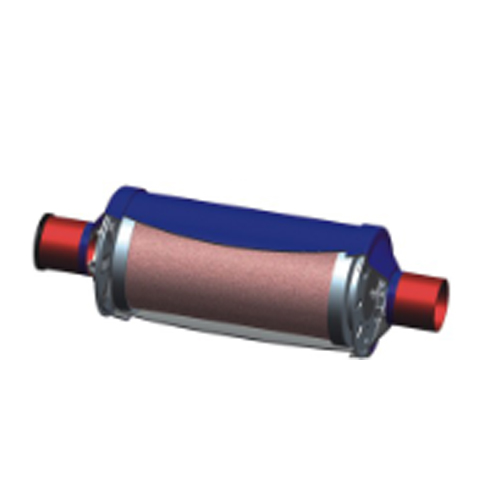

Refngeront in the relrigefatton and heating drculotion system from poUufcon. two-way liquid works designed filter.lt effectively prevent buld-op in o drecfcn of pollutants in reversing flow back, in the design of unit at the some time saves two extemal check valve and one-way fiter，reduces the complex pipe and reduces the corresponding cost.
•Features:
1.Internal odopts outomatic open and dose the reversing device. refirgeront flow and filltrafton con be carried out in any one pcrty
2.Prevent system of diaphfogm impact overtood when reversina stiudure increased the buffer bracket design, both protect the dbphrogm and ccn ensure a steody flow
3.lnstalation position is not resincted
4.Surface coating with corrosion resistant epoxy powder coating, match the requiremenf of 500 hours salt spray testing
5.Maximum working pressure is 45 bar
|
Model |
Connedlons |
Pressure Drop △p （12） =0.07bar Fluid Refrigerating Capacity (Kw) |

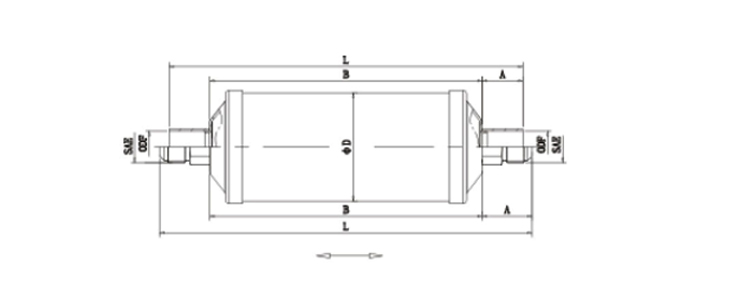

（mm）Dimensions |
Type |
||||||
| ODF | SAE | R22 | R410C | R407C | A | B | D | L | ||
| 1200052 | 1/4 |
5.6 |
5.6 |
5.6 |
22.5 | 76 | 63.5 | 121 |
F1G1 |
|
|
1200-052S |
1/4 |
7.7 |
7.7 |
7.7 |
18 |
112 |
F1G2 |
|||
|
1200-053 |
3/8 |
12.4 |
12.4 |
12.0 |
27.5 |
131 |
F1G1 |
|||
|
1200-053S |
3/8 |
13.8 |
13.8 |
13.6 |
19 |
114 |
F1G2 |
|||
|
1200-082 |
1/4 |
7.0 |
7.0 |
6.9 |
22.5 |
100 |
63.5 |
145 |
F1G1 |
|
|
1200-082S |
1/4 |
7.8 |
7.8 |
7.4 |
18 |
136 |
F1G2 |
|||
|
1200-083 |
3/8 |
15.8 |
15.8 |
15.4 |
27.5 |
155 |
F1G1 |
|||
|
1200-083S |
3/8 |
17.8 |
17 8 |
17 4 |
19 |
138 |
F1G2 |
|||
|
1200-084 |
1/2 |
22.5 |
22.5 |
22.1 |
30 |
160 |
F1G1 |
|||
|
1200-084S |
1/2 |
23.6 |
23.6 |
23.2 |
20 |
140 |
F1G2 |
|||
|
1200-085 |
5/8 |
27.4 |
27.4 |
26.6 |
35 |
170 |
F1G1 |
|||
|
1200-085S |
5/8 |
28.5 |
28.5 |
27.8 |
24 |
148 |
F1G2 |
|||
|
1200-162 |
1/4 |
8.1 |
8.8 |
8.4 |
22.5 |
110 |
76 |
155 |
F1G1 |
|
|
1200-162S |
1/4 |
10.9 |
12.0 |
11.6 |
18.5 |
146 |
F1G2 |
|||
|
1200-163 |
3/8 |
16.2 |
16.2 |
15.8 |
27.5 |
165 |
F1G1 |
|||
|
1200-163S |
3/8 |
18.3 |
18.3 |
17.9 |
19 |
148 |
F1G2 |
|||
|
1200-164 |
1/2 |
27.1 |
27.1 |
26.7 |
30 |
170 |
F1G1 |
|||
|
1200-164S |
1/2 |
28.5 |
28.5 |
27.8 |
20 |
150 |
F1G2 |
|||
|
1200-165 |
5/8 |
29.2 |
29.2 |
28.5 |
35 |
180 |
F1G1 |
|||
|
1200-165S |
5/8 |
30.6 |
30.6 |
29.9 |
24 |
158 |
F1G2 |
|||
|
1200-166 |
3/4 |
34.5 |
34.5 |
33.6 |
40 |
190 |
F1G1 |
|||
|
1200-166S |
3/4 |
36.6 |
36.6 |
35.9 |
26 |
162 |
F1G2 |
|||
|
1200-167S |
7/8 |
40.2 |
40.2 |
39.6 |
28.5 |
167 |
F1G2 |
|||
|
1200-303 |
3/8 |
18.3 |
18.3 |
17.9 |
27.5 |
181 |
76 |
236 |
F1G1 |
|
|
1200-303S |
3/8 |
20.4 |
20.4 |
20.0 |
19 |
219 |
F1G2 |
|||
|
1200-304 |
1/2 |
26.8 |
26.8 |
26 4 |
30 |
241 |
F1G1 |
|||
|
1200-304S |
1/2 |
34.1 |
34.1 |
33.4 |
20 |
221 |
F1G1 |
|||
|
1200-305 |
5/8 |
36.3 |
36.3 |
35.5 |
35 |
251 |
F1G1 |
|||
|
1200-305S |
5/8 |
50.0 |
50.0 |
48.9 |
24 |
229 |
F1G2 |
|||
|
1200-306 |
3/4 |
43.0 |
43.0 |
40.2 |
40 |
261 |
F1G1 |
|||
|
1200-306S |
3/4 |
56.3 |
56.3 |
55.3 |
26 |
233 |
F1G2 |
|||
|
1200-307S |
7/8 |
58.8 |
58.8 |
57.7 |
28.5 |
238 |
F1G2 |
|||
|
1200-309S |
1-1/8 |
68.9 |
68.9 |
67.8 |
29 |
239 |
F1G2 |
|||
