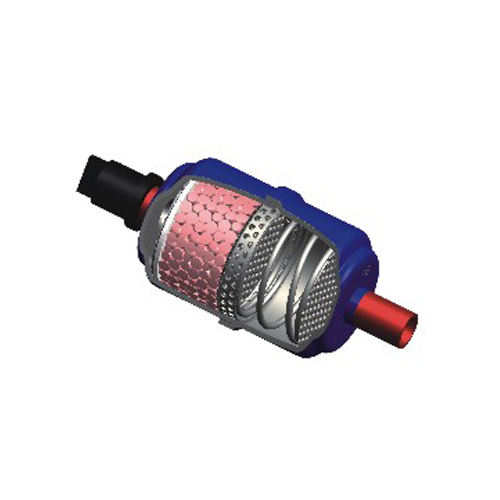

•Introduction:
Expansion valve in the cooling system before the refrigerant must being clean and dry otherwise the impurities can cause expansion valve dirty plugging, water wi cause ice block To avoid the above two situation occur must be installed in front of the refngerant into the expansion valve a filter drier 1170/1171 series filler dryef odopts spherical particle molecular sieve, two-stoge filtration and drying combination design, filtration adsorption abifilty. This series of fitter motecular sieve particles model points XH-9 and XH-11 twoophons.

Contact Us

Details

•Features:
1.1170 and 1171 series have copper over braze welding interface and threaded connections are avaiabte
2.Molecular sieve by using sphencal particles
3.Using two-stage filter design
4.Htrafon precision of 20pm, can maintain effective fittering in the minimum pressure drop
5.Surface coated with caroson resistant epoxy powder coating, match the requirement of 500 hours salt spray testing
6.Maximum working pressure is 45 bar
7.Applicobte temperature is-40℃- +120*C

Medium type

 1170 Series

 1171 Series

XH-9

R22、 R134a、 R143a、 R123、 R124、 R125

XH-9

/

XH-1 1

R410A、 R407C、 R32

/

XH-11



Refrigerant

HFC

Usable

Suggested Use

HCFC

Usable

Usable

CFC

Usable

Usable

1171 Series corresponding to EMERSONEK series



Model

Connedlons

Pressure Drop △p (12) =0.07bar Fluid Refrigerating Capacity (Kw)

(mm)Dimensions

Type

ODF SAE R134a R22/R410A R407C R404A/507 R502 A B D L

1170/1171-032



1/4

7.0

7.7

7.3

4.9

4.9

22.5







66

42



111

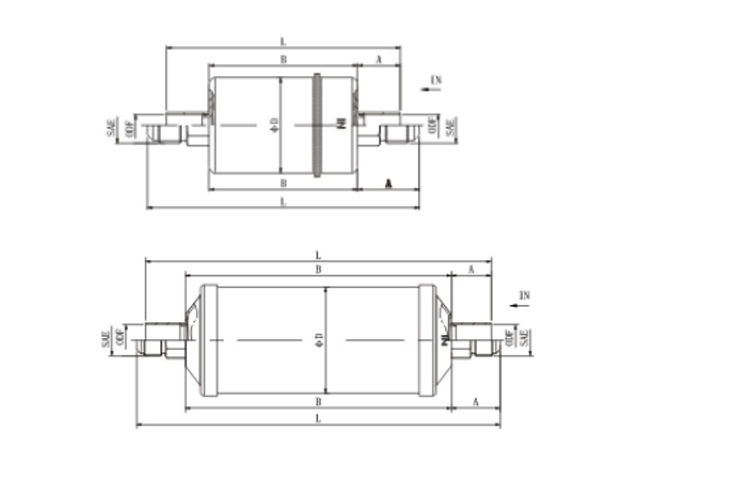

FIG1
98 FIG2

1170/1171-032 S

1/4

9.5

10.2

10.1

7.0

66

16

1170/1171-033

  3/8

10.5

11.5

11.2

7.8

7.4

27.5

121

FIG1

1170/1171-032 S

3/8

10.5

11.5

11.2

7-8

7.4

19

104

FIG2

1170/1171-052

  1/4

7.4

8.1

7.7

5.3

5.3

22.5



76



63.5

121

FIG3

1170/1I71-052S

1/4

11.6

12.6

12.2

8.4

8.1

18

112

FIG4

1170/1171-053



3/8

12.3

13.3

12.9

8.8

8.8

27.5

131

FIG3

1170/1171-053S

3/8

15.4

16.8

16.4

11.2

10.8

19

114

FIG4

1170/1171-082

  1/4

8.1

8.8

8.4

6.0

5.6

22.5



96



63.5

141

FIG3

1170/1171-082 S

1/4

10.9

11.9

11.6

7.7

7.7

18

132

FIG4

1170/1171-083

  3/8

14.O

15.1

15.1

10.2

9.8

27.5

151

FIG3

1170/1171-083S

3/8

15.8

17.2

16.9

11.6

11.3

19

134

FIG4

1170/1171-084

  1/2

23.5

25.6

25.0

17.2

16.5

30

156

FIG3

1170/1171-084S

1/2

25.0

27.1

26.4

18

17.6

20

136

FIG4

1170/1171-162

  1/4

8.1

8.8

8.4

6.0

5.6

22.5



120



63.5

165

FIG3

1170/1171-162 S

1/4

10.9

12.0

11.6

7.7

7.7

18

156

FIG4

1170/1171-163

  3/8

13.7

14.8

14.4

9.9

9.5

27.5

175

FIG3

1170/1171-163S

3/8

15.5

16.9

16.4

11.3

10.9

19

158

FIG4

1170/1171-164

  1/2

27.8

30.8

30.3

18.0

17.3

30

180

FIG3

1170/1171-164 S

1/2

29.9

32.4

31.7

21.8

21.1

20

160

FIG4

1170/1171-165

  5/8

34.1

37.0

36.3

24.6

23.9

35

190

FIG3

1170/1171-165S

5/8

35.6

38.4

37.6

25.7

25.0

24

168

FIG4

1170/1171-166

  3/4

46.5

49.6

48.9

36.4

35.6

40

200

FIG3

1170/1171-166S

3/4



48.6

55.8

54.7

37.8

36.9

26



172

FIG4

1170/1171-167S

7/8



54.6

59.1

56.1

39.4

36.4

28.5

177

FIG4

1170/1171- 303



3/8

15.1

16.5

16.2

10.9

10.6

27.5



191



76

246

FIG3

1170/1171- 303 S

3/8



22.2

23.9

23.6

16.2

15.5

19

229

FIG4

1170/1171-304



1/2

28.5

30.9

30.3

20.8

20.1

30

251

FIG3

1170/1171-304 S

1/2



35.2

38.0

37.3

25.3

24.6

20

231

FIG4

1170/1171-305



5/8

37.3

40.5

39.8

27.1

26.4

35

261

FIG3

1170/1171-305S

5/8



44.4

47.8

46^

30.8

28.4

24

239

FIG4

1170/1171-306



3/4

49.9

53.1

52.4

34.1

33.2

40

271

FIG3

1170/1171-306 S

3/4



52.1

56.3

55.3

37.6

3“

26

243

FIG4

1170/1171-307 S

7/8



59.1

64.0

63.0

42.9

41.5

28.5

248

FIG4

1170/1171-309 S

1-1/8



68.9

74.6

73.2

50.0

48.6

29

249

FIG4

1I70/1I71.413J



3/8

15.1

16.5

16.2

10.9

106

27.5



194



89

249

FIG3

1170/1171-414J



1/2

36.6

39.8

39.1

26.4

25.7

30

254

FIG3

1170/1171-414J S

1/2



38.1

41.2

40.5

27.5

26.7

20

234

FIG4

1170/1171-415



5/8

42.2

45.8

45.1

30.6

29.9

35

264

FIG3

1170/1171-415S

5/8



52.4

55.6

55.0

40.8

40.2

24

242

FIG4

1170/1171-416



3/4

62.2

68.4

67.2

45.8

45.3

40

274

FIG3

1170/1171-416S

3/4



63.8

70.2

69.6

48.6

47.8

26

246

FIG4

1170/1171-417S

7/8



71.5

77.0

76.0

51.7

50.3

28.5

251

FIG4

1170/1171-419S

1-1/8



97.5

105.6

103.4

70.8

68.6

29

252

FIG4

1170/1171-757S

7/8



78.1

84.8

83.1

56.7

54.9

28.5

343

89

400

FIG4

1170/1171-759S

1-1/8



115.1

12(6

122.5

83.4

809

29

401

FIG4

Remark:1.capacity to work status: liquid refrigerant temperature te=30℃. saturated evaporation temperature=-15℃. the pressure drop △p=0.07bar

2.It is not recommended used when pressure drop △p over than 0.14 bar.
